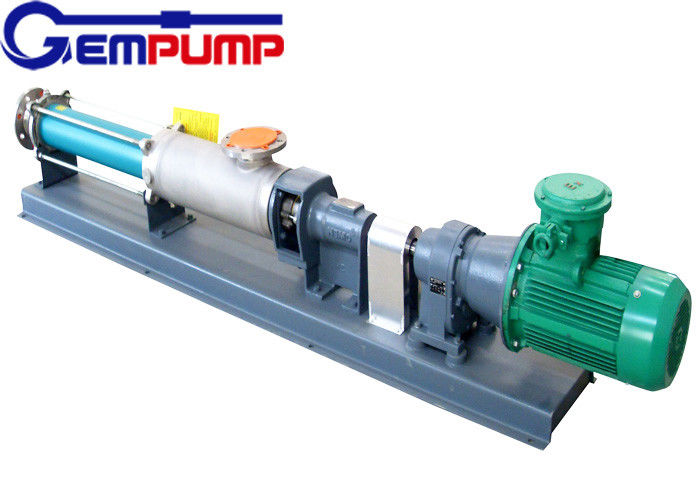

G type single screw pump/with speed motor pump / food use pump / metallurgy pump / paper & printing pump / dyeing pump

Category:
Single Screw Pump
Price:
Negotiation
Payment Method:
D/A, D/P, T/T, Western Union, MoneyGram
Specifications
Flow:
0.8~150m³/h
Head:
60~120m
Application:
Food, Metallurgy, Paper, Printing And Dyeing, Chemical, Fertilizer, Pharmaceutical
Speed:
960 R/min
Motor Power:
0.75~37KW
Color:
Grey & Green
High Light:

Heavy duty slurry pumps

,

centrifugal screw pump

Introduction

Single screw pump use range



Due to the special geometry of the two parts, a separate sealed cavity is formed, the medium has uniformly flowed in the axial direction, the internal flow rate is low, the volume remains constant and the pressure is stable so that no eddy current and agitation are generated. Each stage of the pump output pressure of 0.6MPa, head 60m (water), self-priming height is generally more than 6m.



Because the stator is made of a variety of elastic materials, so the pump for high-viscosity fluid transport and contains a rigid suspension of particulate media or fiber-containing media delivery, there is general pump can not do the characteristics. Its flow and speed are proportional to.



Single screw pump compact, small size, easy maintenance. Screw pump on the media adaptability, smooth flow, pressure pulsation is small, high self-absorption capacity. Working temperature up to 120 ℃, if you need to transport 120 ℃ -350 ℃ high-temperature medium, can be customized. Widely used in food, metallurgy, paper, printing and dyeing, chemical, fertilizer, pharmaceutical and other industrial sectors.





Performance parameters



Screw pump single stage, by the gear speed, electromagnetic speed motor plus gear speed or stepless variable speed motor and gear when the performance parameters:





Model Pressure 0.3Mpa Pressure 0.6Mpa Adjustable revolutions
Speed
(r/min)
Flow
(m3/h)
Motor power
(kw)
Speed
(r/min)
Flow
(m3/h)
Motor power
(kw)
Speed
(r/min)
Flow
(m3/h)
Motor power
(kw)
G25-1 960 2.4 0.75-6 960 2 1.5-6 125~1250 0.1~3 1.5
720 1.5 0.55-8 720 1.27 1.1-8
510 1.08 0.55-4 510 0.9 1.1-4
G30-1 960 3.6 1.5-6 960 3 2.2-6 125~1250 0.2~4 2.2
720 2.28 1.1-8 720 1.9 1.5-8
510 1.63 1.1-4 510 1.35 1.5-4
G35-1 720 4.8 2.2-8 720 4.04 3-8 125~890 0.3~5 3
510 3.36 1.5-4 510 2.8 2.2-4
380 1.92 1.1-4 380 1.60 1.5-4
G40-1 510 6.8 2.2-4 510 5.6 3-4 125~890 0.3~10 4
380 5.1 1.5-4 380 4 2.2-4
252 2.65 1.1-6 252 2.2 1.5-6
G50-1 510 13.8 4-4 510 11.5 5.5-4 80~750 1~18 5.5
380 10.2 4-4 380 7.5 5.5-4
252 5.6 3-6 252 4.4 5.5-6
G60-1 510 20.8 7.5-4 510 16 11-4 63~630 1~20 11
380 15.6 7.5-4 380 12 11-4
252 7.8 5.5-6 252 6 7.5-6
G70-1 510 26 11-4 510 20 11-4 56~560 1~22 11
380 17 7.5-4 380 13 11-4
252 9.1 7.5-6 252 7 7.5-6



Two-stage, by the gear speed, screw pump electromagnetic speed motor plus gear speed or stepless variable speed motor plus gear when the performance parameters



Model Pressure 0.8Mpa Pressure 1.2Mpa Adjustable revolutions
Speed
(r/min)
Flow
(m3/h)
Motor Power
(kw)
Speed
(r/min)
Flow
(m3/h)
Motor Power
(kw)
Speed
(r/min)
Flow
(m3/h)
Motor Power
(kw)
G25-2 960 2.4 1.5-6 960 2 2.2-6 125~1250 0.1~3 2.2
720 1.5 1.1-8 720 1.27 1.5-8
510 1.08 1.1-4 510 0.9 1.5-4
G30-2 960 3.6 3-6 960 3 3-6 125~1250 0.2~4 3
720 2.28 1.5-8 720 1.9 2.2-8
510 1.63 1.5-4 510 1.35 2.2-4
G35-2 720 4.8 3-8 720 4.04 4-8 125~890 0.3~5 4
510 3.36 2.2-4 510 2.8 3-4
380 1.92 1.5-4 380 1.60 2.2-4
G40-2 510 6.8 4-4 510 5.6 5.5-4 125~890 0.3~10 5.5
380 5.1 3-4 380 4 4-4
252 2.65 2.2-6 252 2.2 3-6
G50-2 510 13.8 5.5-4 510 11.5 7.5-4 80~750 1~18 7.5
380 10.2 4-4 380 7.5 5.5-4
252 5.6 3-6 252 4.4 5.5-6
G60-2 510 20.8 15-4 510 16 15-4 63~630 1~20 15
380 15.6 11-4 380 12 15-4
252 7.8 7.5-6 252 6 11-6
G70-2 510 26 15-4 510 20 18.5-4 56~560 1~22 18.5
380 17 11-4 380 13 15-4
252 9.1 11-6 252 7 11-6





Model Speed
(r/min)
Flow
(m3/h)
Pressure
(Mpa)
Motor
(kw)
Head
(m)
Inlet
(mm)
Outlet
(mm)
G20-1 960 0.8 0.6 0.75 60 Dy25 Dy25
G25-1 960 2 0.6 1.5 60 Dy32 Dy25
G25-2 960 2 1.2 2.2 120 Dy32 Dy25
G30-1 960 5 0.6 2.2 60 Dy50 Dy40
G30-2 960 5 1.2 3 120 Dy50 Dy40
G35-1 960 8 0.6 3 60 Dy65 Dy50
G35-2 960 8 1.2 4 120 Dy65 Dy50
G40-1 960 12 0.6 4 60 Dy80 Dy65
G40-2 960 12 1.2 5.5 120 Dy80 Dy65
G50-1 960 20 0.6 5.5 60 Dy100 Dy80
G50-2 960 20 1.2 7.5 120 Dy100 Dy80
G60-1 960 30 0.6 11 60 Dy125 Dy100
G60-2 960 30 1.2 15 120 Dy125 Dy100
G70-1 720 45 0.6 11 60 Dy150 Dy125
G70-2 720 45 1.2 18.5 120 Dy150 Dy125
G85-1 720 65 0.6 15 60 Dy150 Dy150
G105-1 500 100 0.6 22 60 Dy200 Dy200
G135-1 400 150 0.6 37 60 Dy200 Dy250



Single screw pump construction



  1. discharge chamber
  2. rod
  3. screw sleeve
  4. screw shaft
  5. universal joint assembly
  6. suction mouth
  7. Coupling shaft
  8. Filler
  9. Packing gland
  10. Bearing housing
  11. Bearing cap
  12. Motor
  13. Coupling
  14. Shaft Sleeve
  15. Bearing
  16. Drive Spindle
  17. Base
