6/4D-G Series Mechanical Seal Pump V-type V-belt drive ISO9001

China 6/4D-G Series Mechanical Seal Pump V-type V-belt drive ISO9001 supplier

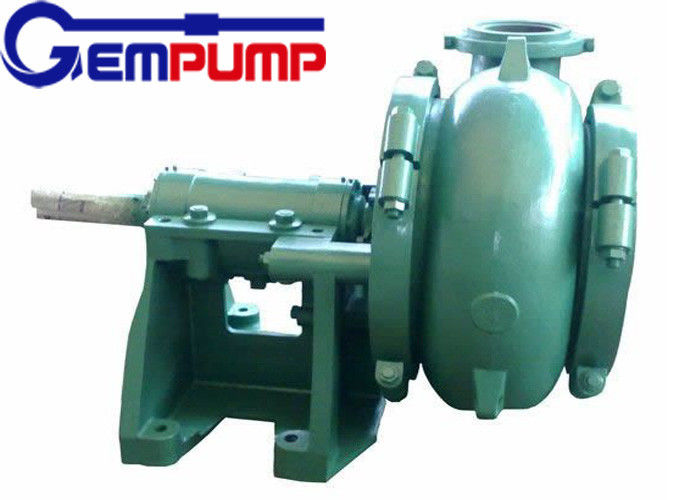

Large Image :  6/4D-G Series Mechanical Seal Pump V-type V-belt drive ISO9001

Product Details:

Place of Origin: Hebei, China
Brand Name: Gempump
Certification: ISO9001
Model Number: 6/4D-G

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 1000 USD/Set
Packaging Details: Standard Export Wooden Case Or By Required
Payment Terms: T/T
Supply Ability: 50/Month
Detailed Product Description
Model: 6/4D-G Port: Beijing, Tianjin
Color: Light Green Or Other Sealing Type: Gland Seal, Mechanical Seal, Expeller Seal
Transmission: V-type V-belt Drive, Flexible Coupling Drive Applications: River Course, Reservoir Desalting, Coastal Reclamation Etc.

6/4D-G Series Mechanical Seal Pump V-type V-belt drive ISO9001





Description



  • This series of pump body and the pump adopts special clamp clamping pump cover, pump outlet direction at any position of 360 degrees, convenient installation and use. The bearing assembly adopts a cylindrical structure, which is convenient for adjusting the clearance between the impeller and the pump body, and can be integrally dismantled during maintenance. The bearings are lubricated by grease.
  • Seal form has packing seal, pay impeller seal, mechanical seal. The driving modes are V V-belt drive, elastic coupling drive, gear reduction box drive, hydraulic coupling drive, frequency conversion drive device, SCR Speed Regulation and so on.
  • The pump uses a variety of speed and a variety of variants, so that the pump in the best operating conditions. The utility model has the advantages of long service life and high operation benefit, and can meet the transportation condition of many kinds of bad conditions. The utility model is suitable for dredging, sucking sand and gravel, dredging river channels, sand excavation, metal smelting, blasting slag transportation, etc.





Feature



  • The Type G (or GH) pump is designed for continuous processing of the most difficult high abrasive slurries. The utility model is suitable for conveying mud, metal melting, explosive mud, dredging boats, river dredging, etc. in mines. Type GH is a high lift pump.
  • Marine sand pump
  • Dredging mud pump
  • Pump for sugar refinery
  • Mud pump for Tailings Transportation​





PERFORMANCE



Pump Model Allowable
Max. Power
(kw)
Clear Water Performance
Capacity Q Head
H (m)
Speed
n(r/min)
Max.Eff.
(%)
NPSH
(m)

m3/h l/s
6/4D-G 60 36-250 10-70 5-52 600-1400 58 2.5-3.5
