20A-LGEM Centrifugal Slurry Pump , Horizontal Wear Resistant Centrifugal Slurry Pump

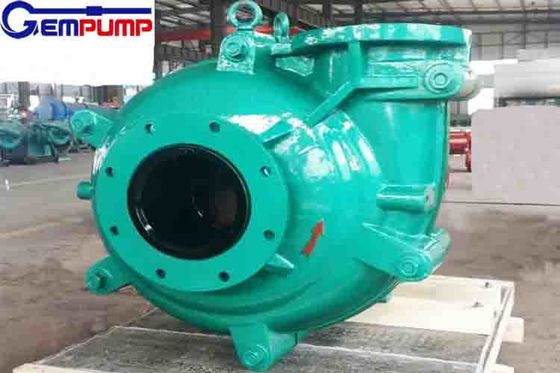

Large Image : 20A-LGEM Centrifugal Slurry Pump , Horizontal Wear Resistant Centrifugal Slurry Pump

Product Details:

Place of Origin:	Hebei, China
Brand Name:	Gempum
Certification:	ISO9001
Model Number:	20A-LGEM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	1000 USD/Set
Packaging Details:	Standard Export Wooden Case Or By Required
Payment Terms:	T/T
Supply Ability:	50/Month

Contact Now

Detailed Product Description

Model:	20A-LGEM	Port:	Beijing, Tianjin
Color:	Blue Or Requried	Sealing Type:	Expeller Seal, Gland Seal
Drive:	DC、CR、ZVZ、CV	NPSH:	2.5~10 M
High Light:	high pressure slurry pump , mining slurry pump

20A-LGEM Centrifugal Slurry Pump , Horizontal Centrifugal Slurry Pump

Description

The L series pump is a cantilever and horizontal centrifugal slurry pump. This machine is suitable for the transportation of abrasive and high-density mud in metallurgy, mining, coal, electric power, building materials and so on.
Pump frames, plates, linings and impellers are made of hard metal. The seal of the pump shaft may be sealed by shaft or centrifugal shaft. The discharge branches can be placed and applied periodically.
L series pump incorporates the same design points of the AH pump, but with a wider range of flow-rates and lower life-cycle costs.
Higher efficiency impellers make the L Series a valuable feature in any plants.
L series: L type slurry pump structure for slurry pump light cantilever, axial horizontal double suction centrifugal slurry pump. The outlet position of the pump can be installed at eight different angles according to the requirement and rotated at 45 DEG C intervals.

Applications

Slag Granulation
Mine Dewatering
Secondary Milling Circuits
Thickener Over and Underflow

Feature

Slurry pump use: Compared with the heavy slurry pump, the pump speed, small size, light weight, suitable for conveying fine particles, low concentrations of slurry or corrosive slurry. The weight of the slurry is generally not more than 30%, and it can also be used to deliver high concentrations of low abrasive slurry.

The numbers of the main parts

	LINERS	IMPELLERS	CASING	BASE	EXPELLER	EXPELLER RING	SHAFT SLEEVE	SEALS
Standard	Chrome Alloy Natural Rubber	Chrome Alloy Natural Rubber	SG Iron	SG Iron	Chrome Alloy or SG Iron	Chrome Alloy or SG Iron	SG Iron	Rubber and Nitrile
Options	Acid Resist™Neoprene Butyl Nitrile Hypalon	Acid Resist™Neoprene Butyl Nitrile Hypalon	N/A	MS Fabricated	Acid Resist™	Acid Resist™	Acid Resist™	Neoprene Viton

PERFORMANCE

Model	P(KW)	Q(m³/h)	H(m)	n(r/min)	η%	NPSH(m)	Impeller D(mm)	Weight( kw)
20A-L	0.75-7.5	1.8-9	7-35.5	1400-3000	40	2.5-3	152	46

Type LGEM pumps are cantilevered, horizontal, centrifugal slurry pumps.They are suitable for delivering low abrasive, low density slurries for metallurgical, mining, coal and build material departments.The shaft seal is adopted both gland seal and centrifugal seal.

Type LGEM pumps are adopted high speed operating and so they have small volumes saving floor area.The frame plates have changeable, wear-resistant, metal liners or rubber liners and the impellers are made of wear-resistant metal or rubber (Rubber for frame plates, impellers of pumps with discharge dia. above 550mm.) The discharge position by request may be rotated 8 different angles at internal of 45 degrees for installation and application.

The pump type should be selected by reference to its performance curves and the selection of capacity range is between 40%~100%.(The corresponding capacity against the max.efficiency point at one speed is 100%.)

"GemPump Company "Short Introduction

Gempump, the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers

FAQ

Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
