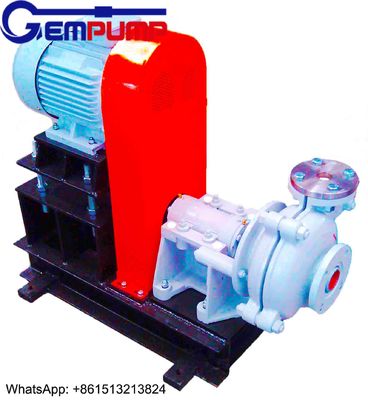

Horizontal Abrasion Corrosion Resistant Centrifugal Coal Mining Sand Slurry Pump

Detailed Product Description
Product Type: Horizontal Single Stage Pump Flow Range: 12-5400m3/h
Head Range: 6-68m Material: High Chrome Alloy Cr28
Application: Mining,Sand Slurry Pumping,sewage,etc

Contact Person:Richard ,
Horizontal Abrasion Corrosion Resistant Centrifugal Coal Mining Sand Slurry Pump
Discharge Diameter: 25-450mm
Capacity: 7-5000m³
Head: 5-59m (Single Stage)

Horizontal Abrasion Corrosion Resistant Slurry Pump
Gempump,as one of the largest heavy duty centrifugal slurry pump manufactures in China, Shijiazhuang Jiemu Machienry Equipment Co.,Ltd ,we provide a complete range of slurry sand pumping solutions. With double casing construction, GH(R) series horizontal slurry pumps feature high efficiency, wear-resistance, stable performance and excellent interchangeability. The material of liner and impeller adopts wear-resistant metal high chrome or natual rubber. Discharge branch can be positioned at 8 different positions at intervals of 45°. In addition to that, GH(R) series centrifugal pumps can upgrade to multistage slurry pumps, if the need arises. And for the drive type, it can be supplied with V-belt drive or DC direct drive configuration. The seal of shaft may be adoptable of gland packing seal, expeller seal or mechanical seal. Pump should rotate clockwise viewing from a driving end.GH(R) series horizontal centrifugal slurry pumps consist of single stage, rubber lined, double casing, heavy duty, or mining heavy duty horizontal slurry pumps, ideal for various applications where long or large stringy solids will be handled.

Application of GH(R) Series Horizontal Slurry Pump:

The GH(R) series horizontal slurry pumps are suitable for delivering abrasive, high density slurries in the metallurgical, mining, paper ,coal, and power industries, and so on, for example, undressed ore, middling, concentrates, tailings etc.
1. Our Pump wet parts are made of wear-resistant high chromium alloy. Top Quality Materail
2. Our Pump bearing assembly use cylindrical structure, adjusting the space between impeller
and front liner easily. They can be removed completely when being repaired. Bearing assembly
use grease lubrication. International famous brearing
3. The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to
any eight positions to suit installations and applications at its working site.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and
frequency conversion drive devices.
6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in
multistage series to meet the delivery for long distance.
Performance Parameters:

TypeAllowable Mating Max. Power(Kw)Clear Water PerformanceImpeller


Head/mSpeed/rpmMax Efficiency/%NPSH/mNo. VaneImpeller Diameter/mm
10X8  560612--136811--61400--850714--105686
12X10 560936--19807--68300--8008265762
14X12 5601260--277213--63300--600773--105965
