ISO9001 Mission Centrifugal Pump 8×6×11 for handling slurries

China ISO9001 Mission Centrifugal Pump 8×6×11 for handling slurries supplier

Large Image :  ISO9001 Mission Centrifugal Pump 8×6×11 for handling slurries

Product Details:

Place of Origin: Shijiazhuang China
Brand Name: Gempump
Certification: ISO9001
Model Number: 8×6×11

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: USD 1000 Unit
Packaging Details: Standard Export Wooden Case Or By Required
Delivery Time: 4 weeks
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Color: Blue、Yellow、By Required Theory: Centrifugal
Port: Beijing、Tianjin Flow: 210~239 M3/h
Head: 23~27.9 M Power: 37/45kw
High Light:

mission magnum pumps


chemical centrifugal pump

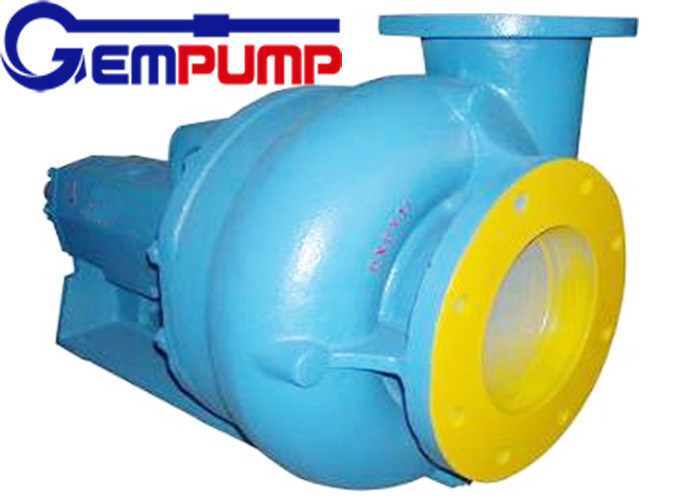

 ISO9001 Mission Centrifugal Pump 8×6×11 for handling slurries



8×6×11mission centrifugal sand pump applies to under 3000-meter-long drilling rigs,also can be can be used to supply mud to triplex mud pump as a filling pump




  • Mission centrifugal pumps have been shown to be the best centrifugal design for handling slurries. These pump series offer a wide range of options for innovative functions in a variety of conventional, demanding, abrasive and corrosive applications. All pumps are used to construct high quality components and parts, and all the 100 dimensions of the same universal task 2500 is the highest, SPD Beck mud for 2.5 / 1.1, MCM 250, Derrickk 250 series, double life premium of 250, xbsy, TSC, victory, 31 hard disk tp-2500c, mattco, cobra pump and Dragon 250, Kazakhstan risbourg, prominent TSC hcp.etc.
  • It has an open impeller design that contains a wide range of vanes and more tangential suction, which allows the pump to create smoother flow patterns when handling abrasive fluids. The material consists of hard ductile iron, high chromium alloy, stainless steel and aluminum bronze hydraulic ends. The pump can be motor, diesel engine, hydraulic motor (horizontal, vertical, or tight coupling configuration). Sizes from 3x2x13 to 10x8x14.



Application and scope


Is mainly used for oil drilling cycle solid control systems, its role is to desander, except for mud mixer, etc. provide a certain displacement and pressure, to ensure the equipment work efficiently. 8×6×11 centrifugal sand pump 3000m drilling machine, can also be used as a pump to the three cylinder mud pump for slurry;



Pump Parameters


Model Discharge Capacity Head Efficiency Power speed Inlet Diameter Outlet Diameter Weight Appearance Size
8×6×11 220~240m3/h 24~28m 0.65 37/45 kW 1450/1750rpm 8″ 6″ 700/755kg 1855×648×850
