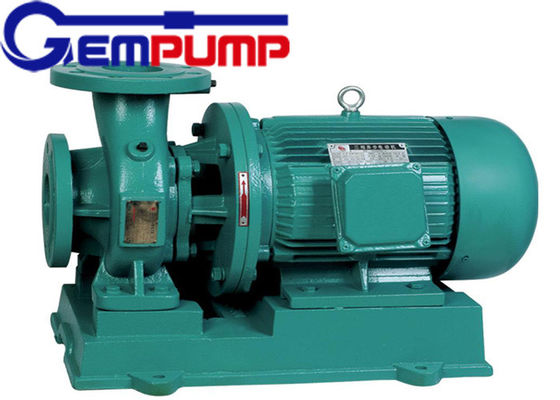

ISW horizontal WRG hot water circulation pump 1.5~50m³/h Flow

China ISW horizontal WRG hot water circulation pump 1.5~50m³/h Flow supplier

Large Image :  ISW horizontal WRG hot water circulation pump 1.5~50m³/h Flow

Product Details:

Place of Origin: Shijiazhuang, China
Brand Name: Gempump
Certification: ISO 9001
Model Number: ISW Horizontal

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Wooden Case Or By Required
Delivery Time: 4 weeks
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70/Month
Contact Now
Detailed Product Description
Flow: 1.5~50m³/h Head: 10~125m
Maximum Working Pressure: ≤ 1.6Mpa Use Of Temperature: ≤ 80 ℃
Suction Pressure: ≤ 1.0Mpa Working Pressure: ≤ 1.6Mpa
High Light:

hot water booster pump


fire-fighting booster pump

ISW horizontal WRG hot water circulation pump 1.5~50m³/h Flow



ISW horizontal pipe centrifugal pump Product use:

  1. ISW-type pipeline centrifugal pump for the delivery of water and physical and chemical properties similar to other liquids used in water, for industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire pressurization and equipment support, the use of temperature T: ≤ 80 ℃.
  2. ISWR (WRG) type hot water (high temperature) circulating pump is widely used in energy, metallurgy, chemical, textile, paper, and hotels and other high-temperature hot water boiler cycle and urban heating system circulation pump, ISWR use temperature T: ≤ 120 ℃, WRG use temperature T: ≤ 240 ℃.
  3. ISWH horizontal chemical pump for the delivery of non-solid particles, corrosive, viscosity similar to the liquid water, for petroleum, chemical, metallurgical, power, paper, food, pharmaceutical and synthetic fiber and other departments, the use of temperature T: -20 ° C to 120 ° C.
  4. ISWB horizontal oil pump, for the delivery of gasoline, diesel, kerosene and other petroleum products, the use of temperature T: -20 ℃ -120 ℃.

ISW Horizontal Pipe Centrifugal Pump Product Features:

  1. smooth operation: the axis of the absolute concentric impeller excellent static and dynamic balance, to ensure smooth operation, no vibration.
  2. water leakage: different materials, carbide seal, to ensure that no leakage of different media delivery.
  3. low noise: two low-noise bearings under the pump, smooth operation, in addition to the motor faint sound, the basic no noise.
  4. the failure rate is low: the structure is simple and reasonable, the key part of the use of world-class quality support, machine trouble-free working hours greatly improved.
  5. easy maintenance: replacement seals, bearings, simple and convenient.
  6. covers a more provincial: exports can be left, right, up three directions, easy to install the pipeline layout, save space.

ISW horizontal pipe centrifugal pump structure:


ISW horizontal WRG hot water circulation pump 1.5~50m³/h Flow

  1. base
  2. water hole
  3. pump body
  4. impeller
  5. take the hole
  6. mechanical seal
  7. water ring
  8. end cover
  9. motor
  10. axis

The structure is shown in Figure: The unit of pump, motor and base three parts. Pump structure, including pump, impeller, pump cover, mechanical seals and other components. The pump is a single-stage single-suction horizontal centrifugal, the pump body and the pump cover are divided from the back of the impeller, which is the back door structure. Most of the pump impeller front and rear are provided with a sealing ring and a counterbore on the rear cover of the impeller to balance the axial force acting on the rotor. The pump inlet is axially inhaled and the outlet is vertically upwards. Pump and motor coaxial, motor shaft extension end with double angular contact ball bearing structure can partially balance the residual axial force pump. Pump and motor direct connection, the installation without correction, with a common base, and with JG-type vibration isolator vibration isolation.
