JMZ Stainless steel self-priming pump with mechanical seal assembly

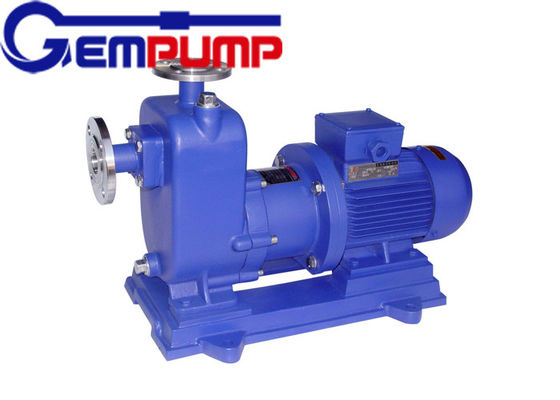

: Large Image : JMZ Stainless steel self-priming pump with mechanical seal assembly

Product Details:

Place of Origin:	Shijiazhuang,China
Brand Name:	Gempump
Certification:	ISO9001
Model Number:	JMZ wine pump

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 500 /Unit
Packaging Details:	Standard Export Wooden Case Or By Required
Supply Ability:	100 unit per month

Contact Now

Detailed Product Description

Material:	Cast Iron、Stainless Steel	Color:	Blue Or By Required
Port:	Tianjin、Beijing
High Light:	self priming chemical pump , self-priming magnetic pump

Material:

Cast Iron、Stainless Steel

Color:

Blue Or By Required

Port:

Tianjin、Beijing

High Light:

self priming chemical pump

self-priming magnetic pump

JMZ Stainless steel self-priming pump with mechanical seal assembly

Description

JMZ stainless steel self-priming pump with new mechanical seal assembly, installation of explosion-proof, not long, suitable for conveying various alcohol - 35 ~ + 120 ℃, beverage, dairy, pharmaceutical, gasoline, solvent oil, syrup, etc.

This pump has a compact structure, convenient operation, small volume, light weight, stable performance, without bottom valve, is starting without lead, etc.The pump replacement after 3 ~ 4 parts can be used for conveying pureed, acid, alkali, salt and other liquids.

Applications

beverage	dairy	pharmaceutical	gasoline	solvent oil
syrup

Performance Parameters

Product categories: self-priming pump

Diameter (inlet/outlet) : 25-125/25-100 (mm)

Flow range: 3-100 (m3 / h)

Lift range: 18 to 40 (m)

Model	Inlet	Outlet	Flow	Head	Suction head lift	Speed	Power
Model	(mm)	(mm)	(m3/h)	(m)	(m)	(r/min)	(KW)
25JMZ-22	25	25	3	22	5	2960	1.1
25JMZ-30	25	25	3	30	6	2960	1.5
40JMZ-22	40	25	6	22	5	2960	1.5
40JMZ-30	40	25	6	30	6	2960	2.2
40JMZ-40	40	25	6	40	6	2960	3
50JMZ-22	50	40	12	22	5	2960	2.2
50JMZ-30T	50	50	20	30	6	2960	4
50JMZ-40	50	40	12	40	6	2960	4
65JMZ-22	65	50	24	22	5	2960	4
65JMZ-30T	65	65	30	30	6	2960	5.5
80JMZ-22	80	65	48	22	5	2960	5.5
80JMZ-30	80	65	48	30	5	2960	7.5
125JMZ-18	125	100	100	18	5	2960	15
