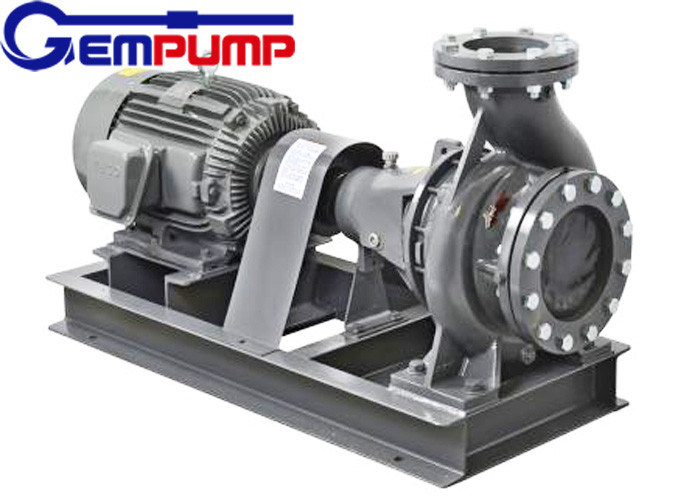

NS multi - purpose Horizontal suction sand pump 60~2000m³/h Flow

NS multi - purpose Horizontal suction sand pump 60~2000m³/h Flow

Product Description:

Multi-purpose pumping pump (sediment pump) wear resistance, and more models, easy selection, can be satisfied with the flow of large, high-head environment. Suitable for conveying the size of solid particles of sediment, strong abrasive mortar, mortar, tailings pulp, slag and so on. Widely used in rivers and lakes pumping sand, reservoir pumping sand pumping ore, reclamation, blowing sand reclamation, power fly ash transport, metallurgical industry transport tailings, water, electricity, mining and so on.

NS series pumping sand pump for single-stage, single suction, cantilever centrifugal pump, according to the export diameter is divided into 500mm, 450mm, 400mm, 350mm, 300mm, 250mm, 200mm, 150mm several series of a variety of specifications. Product wear resistance, and more models, easy selection, can be satisfied with the flow of large, high-head environment. The pump is innovative in hydraulic design and structural design. The number of impeller blades can be changed according to different working conditions. It is suitable for conveying the sediment with solid particles, strong mortar, mortar, tailings, slag and so on. Powder mixed with the concentration of solid and liquid can reach 60%, is the ideal pumping sand, sand delivery equipment, the user can be based on actual conditions using single or multi-machine series running in the way to achieve the purpose of long-distance construction.

Widely used in rivers and lakes, reservoir pumping sand pumping ore, reclamation, blowing sand reclamation, power fly ash transport, metallurgical industry transport tailings, water, electricity, mining, metallurgy, coal, building materials, chemicals, food and Sewage treatment and so on.

Product Features and Benefits:

1. the pump body inside and outside the double metal structure, the pump shell for the vertical in the open, high safety performance, the outlet position by 45 degrees interval rotation installation.
2. over-current parts of the anti-abrasion resistance of high chromium wear-resistant alloy casting, with high efficiency, energy saving, wear, reliable operation and so on.
3. the unique seal structure, packing long life. Shaft seal according to different conditions are divided into: Vice impeller seal, packing shaft seal and mechanical seal.
4. the use of closed impeller, good wear resistance, high pump efficiency.
5. the pump drive with direct drive and belt drive in two ways, from the direction of the prime mover, the pump clockwise rotation.
6. can be transported by adjusting the number of leaves and impeller diameter containing a small amount of larger particles of the mixture.
7. deep suction ability, can reach underwater 35 meters deep.
8. head large, individual models up to 100 meters head.
9. large flow, the maximum flow of up to 2000 cubic meters / hour.
10. models and more convenient to choose according to different conditions of environmental conditions.
