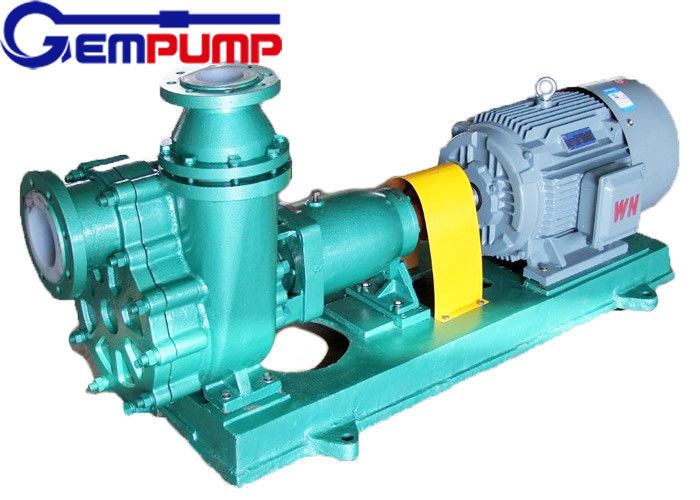

FZB Fluoroplastic alloy Self Priming Centrifugal Pump acid red Cast Iron strong alkali pump
stainless steel self priming pump
,self-priming magnetic pump
FZB Fluoroplastic alloy Self Priming Centrifugal Pump acid red Cast Iron strong alkali pump
Description
FZB series fluoroplastic self-priming pump is according to the international standard and combined with non-metallic pump design and manufacturing process.
Use a metal shell lining fluoride plastic pump body, flow components are all made of fluoroplastic alloy, pump cover, impeller, etc all fluorine plastic with metal insert outsourcing whole sintering suppression and become, shaft seal mounted outside using advanced bellows mechanical seal, static ring choose 99.9% alumina ceramic (or silicon nitride), ring with four fluorine filling materials, its excellent corrosion resistant seal.
Import and export of pump adopt cast steel reinforcement, in order to enhance the pump pressure resistance.
Practical use shows that the pump has corrosion resistance, abrasion resistance, high temperature resistant, not aging, high mechanical strength, smooth operation, reasonable structure, advanced, sealed performance is reliable, easy disassembly maintenance, long service life, etc.
FZB is the most prominent feature of self-priming pump with self-priming function, can be pumping liquid, below the pump is installed and stable performance, simple operation, just after the pump priming before first use, the second and later use without priming, boot can be directly, self-priming height is determined based on the medium density within 2 to 4 meters, is the best choice to replace the hulking submerged pump.
Applications
This series of acid self-priming pump can be safely transmission of strong acid, strong alkali, highly toxic, organic solvent, and pure, valuable chemical medium, fully meet the strict security, reliability and ecological environmental protection requirements, suitable for all kinds of chemical processes.
Performance Parameters
| Speed:n=2900r/min Design pressure:0.6MPa *standard parameter | |||||||||
| Model | Flow m3/h | Head M |
Efficiency % | NPSH m |
Inlet×Outlet mm | Self - Priming Lift m |
Self - Priming Lift s |
Motor power Km |
Weight Kg |
| 25FZB-20L | 1.5 | 19 | 10 | 3 | 25×25 | 1 | 180 | 2.2 | 65 |
| *3.6 | 18 | 20 | |||||||
| 6 | 16 | 30 | |||||||
| 40FZB-20 | 5 | 22 | 35 | 3 | 40×50 | 1 | 180 | 3 | 47 |
| *8 | 20 | 42 | |||||||
| 12 | 17 | 40 | |||||||
| 40FZB-30L | 5 | 32 | 24 | 3.5 | 40×50 | 3 | 150 | 4 | 160 |
| *8 | 30 | 48 | |||||||
| 12 | 28 | 45 | |||||||
| 50FZB-20 | 8 | 22 | 35 | 3 | 50×50 | 1 | 180 | 3 | 47 |
| *12 | 20 | 42 | |||||||
| 15 | 17 | 40 | |||||||
| 50FZB-30L | 8 | 32 | 24 | 3.5 | 50×50 | 3 | 150 | 4 | 160 |
| *12 | 30 | 48 | |||||||
| 15 | 28 | 45 | |||||||
| 50FZB-45L | 8 | 47 | 24 | 3.5 | 50×32 | 3 | 150 | 7.5 | 210 |
| *12 | 45 | 35 | |||||||
| 15 | 43 | 32 | |||||||
| 50FZB-70L | 8 | 72 | 20 | 4 | 50×32 | 3 | 150 | 15 | 320 |
| *12 | 70 | 26 | |||||||
| 25 | 65 | 39 | |||||||
| 60FZB-30L | 15 | 32 | 40 | 4 | 65×50 | 3 | 200 | 7.5 | 210 |
| *25 | 30 | 55 | |||||||
| 35 | 27 | 48 | |||||||
| 65FZB-45L | 15 | 47 | 30 | 4 | 65×40 | 3 | 180 | 11 | 300 |
| *25 | 45 | 42 | |||||||
| 35 | 38 | 44 | |||||||
| 65FZB-70L | 15 | 72 | 30 | 4 | 65×40 | 3 | 180 | 30 | 530 |
| *25 | 70 | 41 | |||||||
| 35 | 65 | 42 | |||||||
| 80FZB-30L | 35 | 32 | 54 | 4.5 | 80×65 | 3 | 150 | 11 | 284 |
| *50 | 30 | 58 | |||||||
| 60 | 25 | 48 | |||||||
| 80FZB-45L | 35 | 47 | 45 | 4.5 | 80×65 | 3 | 180 | 15 | 330 |
| *50 | 45 | 53 | |||||||
| 60 | 42 | 46 | |||||||
| 80FZB-70L | 35 | 72 | 45 | 5 | 80×50 | 3 | 200 | 30 | 550 |
| *50 | 70 | 50 | |||||||
| 60 | 65 | 43 | |||||||
| 100FZB-30L | 65 | 32 | 54 | 6 | 100×80 | 3 | 150 | 18.5 | 390 |
| *100 | 30 | 60 | |||||||
| 110 | 26 | 54 | |||||||
| 100FZB-45L | 65 | 46 | 48 | 6 | 100×80 | 3 | 150 | 30 | 500 |
| *100 | 45 | 55 | |||||||
| 110 | 40 | 48 | |||||||
