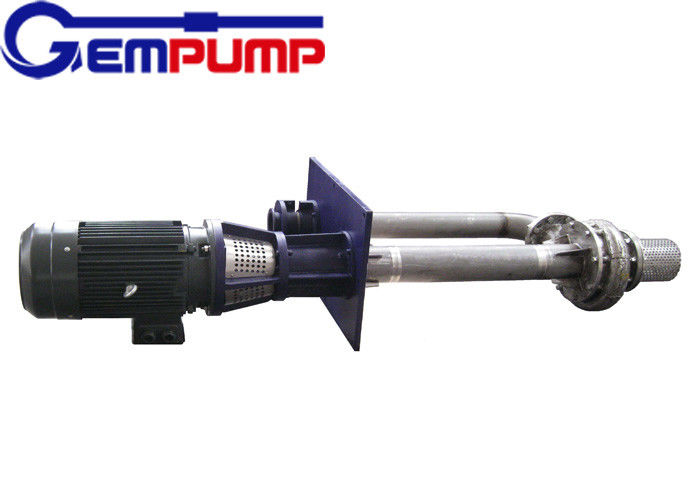

FY type corrosion-resistant stainless steel pump for Corrosion resistant liquid / Machinery Seal

Category:
Submersible Sewage Pump
Price:
Negotiation
Payment Method:
D/A, D/P, T/T, Western Union, MoneyGram
Specifications
Flow:
3.27~100.8 M³/h
Head:
13~40 M
Application:
Petroleum, Chemical, Pharmaceutical, Paper, Metallurgy, Sewage Treatment
Medium Temperature:
-20-140 ° C
Medium PH Value:
5 ~ 9
Color:
Gray & Black
High Light:

commercial sewage pump

,

industrial sewage pumps

Introduction

FY type corrosion-resistant stainless steel pump for Corrosion resistant liquid / Machinery Seal





Description



FY series of liquid pump is the unit in the traditional corrosion-resistant liquid pump on the basis of the integration of Switzerland Sulzer similar products of advanced technology, improved design and production of new pumps; the pump to eliminate the other commonly used liquid pump Mechanical seal and the selection of a unique structure of the impeller, so that the pump energy efficient, no leakage, long life, which is widely used in petroleum, chemical, pharmaceutical, paper, metallurgy, sewage treatment and other industries.





FY-type stainless steel liquid pump ┃ liquid chemical pump under conditions:

  1. The temperature of the conveyed medium is -20-140 ° C.
  2. Cast iron material pump, medium PH value in the range of 5-9.
  3. The use of open-type impeller pump, the liquid contained in the liquid particle diameter to do not exceed the pump population diameter of 30% is appropriate.



FY type stainless steel liquid pump ┃ liquid chemical pump Model meaning:



50FYRB-25AK
50: Pump inlet diameter (mm)
FY: liquid pump
R: high-temperature type, temperature ≤ 350 ℃
B: Material 1Cr18Ni9Ti stainless steel
25: head (m)
A: Impeller outer diameter first turning
K: open impeller





FY-type stainless steel liquid pump ┃ liquid chemical pump Features:

  1. The pump is a vertical structure, beautiful appearance, directly installed in the transport medium storage, no additional footprint, thereby reducing the infrastructure investment.
  2. Elimination of the mechanical seal, to solve the other liquid pump due to mechanical seal easy to wear and often need to repair the trouble, saving the pump operating costs and improve work efficiency.
  3. The use of a unique centrifugal double-balanced impeller for the delivery of solid particles and other clean media, low vibration and high efficiency, high efficiency; open double-balanced impeller for the transport is not clean with solid particles and short fibers Liquid, running smoothly, no clogging.
